Pumping wells for two decades.



Pumping wells
for two decades.

Constantly improving our manufacturing process

Our hoses and fittings are overrated from operational pressure at all points.  Our N2 sphere is top of the market for balancing units and provides a smooth operation with minimal intervention required.  Our seals are manufactured and tested to our well-researched specs that guarantee the longest seal life in the industry.  Our lubricants and hydraulic oil are premium components that have been comparatively tested in our shop to ensure that they are of the highest performance and longevity.  Our machined components have been manufactured for us by the same Alberta-based shop for 20 years which maintains a reputation as one of the top machine shops in the province.
House Plans Kelowna

Ecoquip Specifications & Models

Tell us what your requirements are and we design it.
Unit size can be designed and engineered to your specific requirements with the possibility of a unit with 192” maximum stroke length and 6-7 SPM or smaller units of less than 100” stroke and further simplicity to maintain cost-effective HPU for your application. We have simple month-to-month rental agreements, new or re-manufactured units ready for purchase or rent-to-own agreements available.
MODEL Number
ECO-360-100
  • Strokes (per minute) : 1 to 8
  • Maximum Load (lbs) : 36,000
  • Maximum Stroke Length (inches) : 100
MODEL Number
ECO-360-144
  • Strokes (per minute) : 1 to 8
  • Maximum Load (lbs) : 36,000
  • Maximum Stroke Length (inches) : 144
MODEL Number
ECO-400-192
  • Strokes (per minute) : 1 to 7
  • Maximum Load (lbs) : 40,000
  • Maximum Stroke Length (inches) : 192


Hydraulic System
Hoses and fittings: All hoses and fittings are rated to exceed spec and are 3000 psi to 9000 psi. Hydraulic Oil: Schaeffer 275S Synthetic hydraulic oil.
All hoses and fittings are rated to exceed spec by size and are 3000 psi to 9000 psi.

Lifting Unit (Slave Cylinder)
Dimensions: 2 x 3” (7.62cm) Cylinders, 24”(61.0cm) base, 21’ (6.4m) tall, 35’ (10.7m) fully extended Weight: 2,500lbs (1134kg) Mounting Plate: Secured to tubing bonnet.
Adapted to fit 2000, 3000 and 5000 psi wellheads.
Standard size R45, R46.
Can be adapted to R24, R27. Seals: Slave Cylinder MAWP 11,600psi (80,000kPa).
One wiper seal and 2 pressure seals.
Any oil passing the pressure seals will be contained by the wiper seal and returned to the hydraulic tank before leaking from the system.

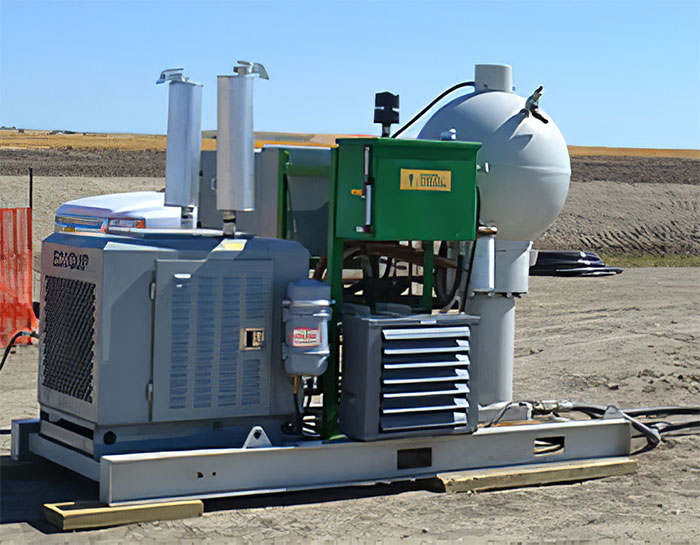

Power Unit (Master Cylinder)
Dimensions: 4.5’(1.37m)w x 10’(3.05m)l x 8’(2.44m)h Weight: 6,500lbs (2948kg) Motor: 50 hp Electric, 350in3 (5.7L) or 262in3 (4.3L) GM Vortec Gas engines Nitrogen Sphere: 36” (91.4cm) 1,750psi (12,066kPa) max Master Piston: Piston Head MAWP 8,700 psi (60,000kPa)
Any leaking of the above seals is internal in the cylinder.

Ecoquip Advances & Advantages

Full Service, rent or sale, we’re by your side.
Our units are available for rent or sale. Our company is full service and ensures your equipment is always pumping. Set up, tear down, servicing and troubleshooting is provided by our friendly and knowledgeable service team. Monthly rental arrangements are available for any term that you may require. We stand by our equipment and know you will be satisfied with your choice to use Ecoquip equipment.
House Plans Kelowna

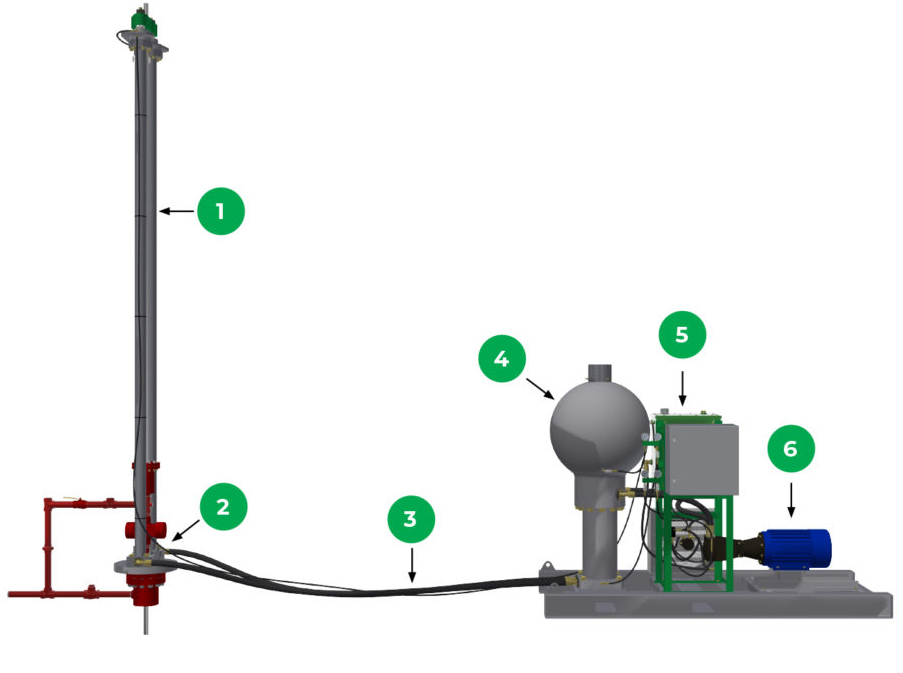

1
Perfect, Vertical Lift

Mounts directly and evenly on top of wellhead ensuring polished rod always pulled straight up and down.

2
No Pressure Spikes

No unreliable and unsafe proximity switches or sensor bars to control stroke length.

3
Flexible HP Usage

Engine fully enclosed with safety and the ever-changing environment in mind. Gas or electric motors available.


4
True Balanced Operation

LN2 counter-balance in unit acts as your surface shock absorber for downhole equipment and stores energy for the next up stroke.

5
Precise, Smart Controls

Control system gives complete stroke control and immediate well information to operator. Remote monitoring capable.

6
Consistent Stroking

Smooth stroke ensures almost non-existent movement and vibration of all hoses, no whip protection required.

Ecoquip Production Calculator
